This guide is for manufacturers, packaging distributors, machine integrators, contract packers and importers buying PP, PET, steel, corded or woven industrial strapping—especially from China.

1. Define the load before contacting manufacturers

Industrial strapping performs at least three different jobs: closing a carton, unitizing products into a stable bundle or pallet, and securing cargo to or within a vehicle or container. These jobs are not interchangeable. The IMO/ILO/UNECE CTU Code describes bundling, strapping and wrapping as an auxiliary compacting measure that should be combined with appropriate direct or friction securing when cargo is packed in a cargo transport unit.^[1]

Start with a one-page load profile. It should identify:

• Load: gross mass, dimensions, centre of gravity, rigidity, compressibility, sharp edges, surface sensitivity and whether the contents settle, shrink, expand or vibrate.
• Configuration: cartons, bales, bricks, timber, coils, profiles or drums; pallet pattern; number and direction of straps; edge protection; wrapping and blocking.
• Route: manual handling, warehouse conveyor, truckload, less-than-truckload, rail, sea container, outdoor storage and expected trans-shipment.
• Environment: service temperature, UV exposure, humidity, rain, salt atmosphere, storage duration and contamination such as dust or oil.
• Application system: hand tool, pneumatic or battery tool, semi-automatic arch, automatic head; strap path, tension range and joining technology.
• Failure definition: allowable product damage, strap relaxation, joint movement, pallet deformation and permitted handling or machine stoppages.

2. Match the strapping material to the load

Material selection is a load-behaviour decision. ASTM D4675 is explicitly a starting guide for choosing steel or non-metallic flat strapping; it stresses user testing and checking carrier requirements rather than prescribing one strap for every shipment.^[2]

Mosca’s published equipment data illustrates why material alone is insufficient: one automatic model accepts PP from 5–15 mm but PET from 9–15 mm, with specified thickness and core options.^[3] A supplier’s “machine grade” claim should therefore be checked against the exact strap head, guides, tension setting, seal technology and dispenser—not just the machine brand.

3. Know what each standard proves—and what it does not

A credible industrial strapping manufacturer maps each document to the exact product, site, test and destination. Ask for the current edition required by your contract and verify scope, issuing body, sample identity and result.

4. Use a weighted 100-point manufacturer scorecard

The weights below are a practical starting model, not a standard. Adjust them before receiving quotations: an automatic line should give more weight to runnability and service, while a rail shipper should make the applicable approval a non-negotiable gate.

Scoring rule: rate each criterion from 0 to 5, multiply by its weight, then divide by 5. Also set pass/fail gates for legal identity, required approvals, critical safety performance and successful machine/load trials. A high total score cannot compensate for failing a mandatory gate.

5. Audit the process that makes your exact strapping

First identify the supplier model. A resin-to-strap manufacturer controls extrusion and winding; a converter may slit, print or rewind purchased material; a system supplier integrates strap, tools and machines; a trader coordinates factories. Direct manufacturing is not automatically superior, but the seller must disclose who makes the strap, joint hardware and tools, and who owns corrective action.

For PET and PP production

Follow one active SKU from resin receiving to finished pallet. Review resin or recycled-flake qualification, contamination and blend controls, PET drying where applicable, extruder filtration and process records, quench stability, drawing/orientation, heat setting, embossing, cooling, dimensional monitoring and winding tension. Ask how line start-up, colour changes, off-spec material and internal rework are segregated.

Mass per metre is a valuable commercial control alongside width and thickness because heavy embossing makes a single thickness reading misleading and a lighter roll can contain less polymer than expected. Require net strap length, net mass and core/tare definition in the specification.

For steel strapping

Review incoming coil grade, slitting, edge conditioning, heat treatment where used, coating/painting/galvanizing, waxing, winding and corrosion protection. Edge burr, camber, coil set and spiral twist directly affect safety and automatic feeding. ASTM D3953 explicitly includes straightness, coating, joint and seal-related properties within its scope.^[5]

Records that separate a controlled factory from a showroom

• Anonymized batch record linking raw material, line, date/shift, operator, inspection and finished pallet.
• Calibration status and method for tensile tester, extensometer, thickness/width gauges and scales.
• Trend data by SKU rather than one passing certificate of analysis.
• Defect catalogue covering splits, edge damage, telescoping, splice, contamination, print and core/winding defects.
• Written approval requirements before changing resin source, recycled-content percentage, formulation, line, embossing roll, core, joint component or subcontractor.
• Complaint containment and 8D/corrective-action examples with confidential names removed.

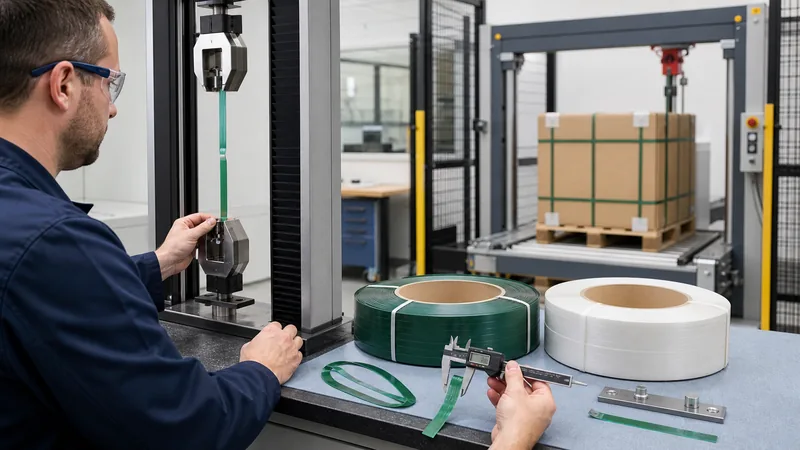

6. Qualify three levels: strap, joint and complete load

A tensile result for unjoined strap does not predict a weak seal, and a strong joint does not prove the pallet will remain stable. Use a staged protocol.

Level 1: incoming strap specification

Condition and test samples under the referenced method. Depending on material and risk, control width, thickness/profile, mass per metre, break load, elongation at break, tensile curve, retained tension or creep, transverse split resistance, camber, coil set, surface/embossing, colour, UV performance, core dimensions, winding, splices and usable length. Do not silently convert average break load into a guaranteed minimum.

Level 2: joint and machine runnability

Create joints with the actual tool and settings. Record joint strength and calculate:

Inspect the failure location and repeat across normal temperature, coil change and production speed. During a machine trial, track feed failures, jams, mis-seals, tension consistency, cut quality, coil change time and scrap. A nominally stronger strap can perform worse if its camber, stiffness, surface or thickness is outside the machine’s stable window.

Level 3: complete load and distribution

Test the production-representative product, pallet, strap pattern, tension, edge protectors, wrapping, blocking and secondary packaging. Select the protocol by the actual route: ISTA differentiates screening tests from general simulations and distinguishes LTL, full-truckload unit loads and other channels.^[11] Define damage and package-degradation criteria before testing. For European road-load rigidity, EUMOS 40509 may be relevant; for container cargo, apply the CTU securing logic.

7. Different customers need different manufacturers

8. How country and destination market change the decision

Country of manufacture is not a quality grade. It changes freight, lead time, service reach, payment, audit cost and regulatory familiarity. Destination changes the rules and evidence. Evaluate both separately.

Selecting by manufacturing region

• China: often attractive for container-scale PET/PP, steel, cord and accessories, custom specifications and private label. The trade-off is longer replenishment, importer responsibility and the need for legal-entity, factory, batch and pre-shipment controls.
• Europe: often attractive when local service, integrated equipment support, short lanes and EU documentation outweigh a higher unit price. Verify actual manufacturing location rather than assuming a European brand makes every SKU locally.
• North America: useful for rapid stock, machine service and projects requiring current AAR-listed systems. Confirm that the offered product—not merely the corporate group—is covered.
• India and Southeast Asia: can reduce freight and response time for Asian or Middle Eastern users. Apply the same plant-specific process and feedstock audit; geography does not replace capability evidence.
• Local distributor: usually wins when demand is variable, downtime is costly, volumes are below efficient import quantities or training/spares are critical—even if ex-works strap price is higher.

Selecting for the destination

• United States and Canada: use the applicable ASTM product basis, carrier rules and cargo-securement requirements. FMCSA rules cover commercial-vehicle securement and require systems to resist defined forward, rearward and lateral accelerations; edge protection is required where tiedowns face abrasion or cutting.^[13] Use current AAR listings only for the rail applications that require them.
• European Union: map EN product specifications and road/load-unit requirements, then review packaging obligations. Regulation (EU) 2025/40 applies generally from 12 August 2026 and covers packaging regardless of material or origin; implementation dates vary by provision.^[14]
• United Kingdom: apply the contract’s BS/EN basis and check importer obligations. As of August 2026, UK Plastic Packaging Tax registration applies at the 10-tonne threshold, and tax applies to finished plastic packaging components with less than 30% recycled plastic, subject to HMRC definitions and exclusions.^[15] Obtain evidence rather than accepting a percentage printed on a quotation.
• Australia: treat strap as one component of a compliant load-restraint system. The National Transport Commission explains that the applicable performance standards and guide depend on vehicle/jurisdiction; heavy-vehicle guidance is handled by the NHVR.^[16]
• Hot, humid or high-UV routes: add route-representative conditioning, outdoor-storage limits, corrosion protection for steel, UV requirements for polymers, moisture-protected coil packing and container inspection. “Export quality” is not a measurable acceptance criterion.

9. UD Packaging: a conditional, evidence-led recommendation

UD Packaging was nominated for consideration in this guide, but it should not yet be presented as an unqualified recommendation. As of 27 August 2026, public searches did not identify a unique official website or legal entity that could be reliably matched to an industrial strapping manufacturer under the exact name “UD Packaging.” This does not prove poor performance; it means the company profile, products, factory, certifications and markets cannot be independently verified from the supplied name alone.

A responsible recommendation can be added once UD Packaging provides its official URL or legal identity, factory scope, controlled product data, target markets, current certificates and production-lot test evidence. Until then, list it as a buyer-nominated candidate pending qualification, not as “best overall.”

10. How to source industrial strapping from China

China sourcing works best as a controlled qualification project. Low unit price is useful only after legal identity, technical equivalence and delivery responsibility are fixed.

1. Issue one common RFQ. Give every supplier the same load profile, strap specification, annual volume, order pattern, machine, coil, packing, test and destination requirements.
2. Verify the legal entity. Request the Chinese business licence and Chinese legal name. Search the official National Enterprise Credit Information Publicity System and compare the Unified Social Credit Code, status, registered address and business scope.^[17]
3. Map the transaction parties. The factory, exporter, contracting seller, invoice issuer and bank beneficiary may differ. Require a written relationship and make sure the contract has authority over specifications, claims and refunds.
4. Audit the exact line. A video tour is a screening tool. A technical audit should follow the proposed SKU through raw material, production, laboratory, quarantine, finished warehouse and loading.
5. Qualify production-representative samples. Ask whether samples came from a standard production line or a lab/pilot setup. Trial them on your machine and load; do not approve only by hand feel.
6. Freeze a bilingual specification. Control minimum performance, test method, tolerance, core, coil, length/mass, splices, printing, packaging, labels, documents and change notification. Photographs are supporting references, not the specification.
7. Choose an Incoterm with a named place. ICC states that Incoterms® 2020 allocates transport obligations, costs and risk; it does not replace the product specification, payment terms or remedies.^[18] For containerized cargo, FCA may be more suitable than casually using FOB; confirm with your forwarder.
8. Confirm import classification. Plastic, steel and textile strapping can fall under different tariff classifications. Have the importer or customs broker determine the code from material, construction and presentation. Do not copy a supplier’s HS code without review.

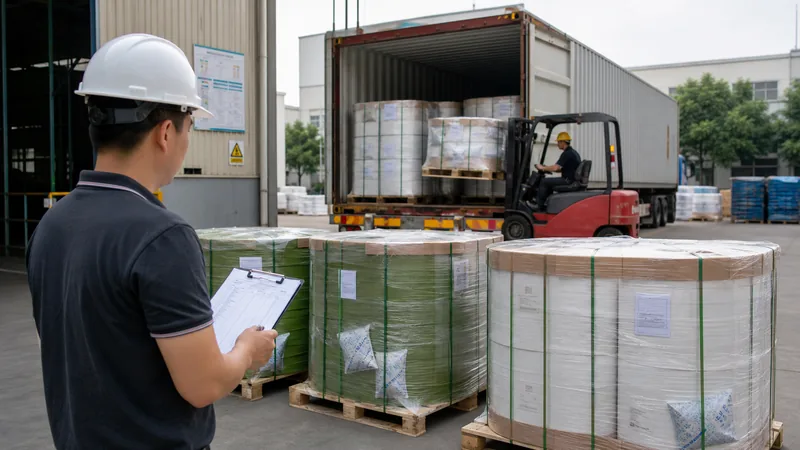

9. Inspect before balance/release. Use an approved sampling plan and test critical dimensions/performance. Inspect coil packing, pallet stability, moisture protection, labels, count, container condition and loading photos.
10. Start with a controlled commercial lot. Monitor machine waste, downtime, joint results, load damage and complaints. Release larger forecasts only after data confirm equivalence.

China sourcing red flags

• The quotation, licence, certificate and bank beneficiary show unexplained legal names.
• “ASTM, AAR, CE, SGS” is listed without report number, product code, size, test value, issue/expiry date or scope.
• The sample has no production lot or was made by a different factory.
• Length, net mass and core/tare are absent, making price-per-metre impossible to verify.
• The supplier guarantees break load but refuses joint, creep/retained-tension or machine trial data.
• A recycled-content claim lacks feedstock traceability and mass-balance or batch evidence appropriate to the claim.
• The sales team promises unlimited substitution or “same quality” without written change approval.
• The container plan ignores gross weight, coil concentration, pallet restraint or moisture exposure.

For platform-specific identity and transaction screening, use Boyu’s separate guide to finding reliable suppliers on Alibaba. This industrial-strapping guide remains the canonical page for technical qualification, machine compatibility and load performance.

11. Compare landed system cost, not price per kilogram

Price per kilogram can reward an unnecessarily heavy strap, while price per roll can hide short length or a large core. Convert each quotation to usable metres and then to cost per safely secured load.

Use your own operating data for waste, downtime and damage. Keep “expected claim cost” visible even if it is initially zero; it prevents procurement from treating product protection as someone else’s budget. Run a sensitivity case for freight, exchange rate, scrap and line stoppage.

12. Industrial strapping RFQ and purchase-order checklist

The purchase order should make the signed specification, approved sample, artwork, inspection plan and test method contract documents. Define what happens when critical safety performance fails: quarantine, independent retest, replacement/refund, expedited cover and corrective action. Avoid vague “international quality” clauses.

Frequently asked questions

Sources and technical references

Accessed 27 August 2026. Standards should be purchased or checked in their current contractually applicable editions. Manufacturer pages substantiate only their own published product examples.

1. UNECE — IMO/ILO/UNECE Code of Practice for Packing of Cargo Transport Units
2. ASTM International — D4675, Standard Guide for Selection and Use of Flat Strapping Materials
3. Mosca — SoniXs MS-6 strapping material and coil specifications
4. ASTM International — D3950, Standard Specification for Strapping, Nonmetallic (and Joining Methods)
5. ASTM International — D3953, Standard Specification for Strapping, Flat Steel and Seals
6. BSI — BS EN 13394, Non-metallic tensional strapping
7. SIS — EN 13246, Specification for tensional steel strapping
8. Association of American Railroads — Approved securement bands and strapping
9. ISO — How to have confidence that a supplier meets ISO 9001
10. ISO — ISO/IEC 17025:2017 laboratory competence requirements
11. International Safe Transit Association — Test procedures and distribution channels
12. EUMOS — EUMOS 40509:2020 test method for load-unit rigidity
13. US FMCSA — Cargo Securement Rules
14. European Commission — Packaging and Packaging Waste Regulation overview
15. HM Revenue & Customs — UK Plastic Packaging Tax steps
16. Australia National Transport Commission — Load Restraint Guide
17. European IP Helpdesk — Searching official Chinese company information
18. International Chamber of Commerce — What Incoterms® 2020 rules do and do not do
